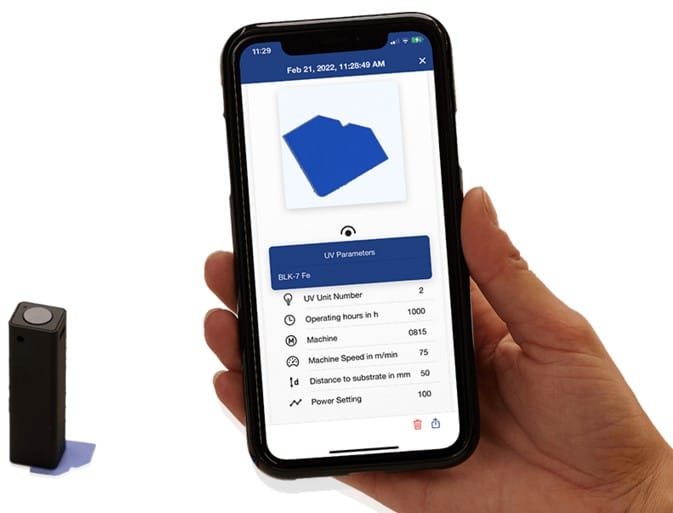

The UV Analyzer is an innovative, mobile and app-based UV measuring device. It consists of the UV Analyzer App for Android and iOS, the UV Analyzer measuring strips and the UV Analyzer Stick. The app can be downloaded for free from the Apple® App Store® or Google Play.

Thanks to the revolutionary technology, the measurement is quite simple. Stick the measuring strip on the substrate. After irradiation with UV, the measuring strip is measured with the stick. Via Bluetooth, the stick is coupled with the app. The app displays the measured UV dose in mJ/cm2. This dose value can be compared with your reference value to determine the aging. Your system-specific reference value must be determined by you on site, by your own measurement, when the LED/UV system is new, or alternatively with a new UV lamp and reflector. The measurements of the UV Analyzer can be exported for quality assurance and documentation.

Technical data:

    • Dimensions HxWxD: 6 cm x 1,8 cm x 1,6 cm
    • Weight: 16 g
    • Rechargeable battery with USB
    • Connectivity: Low Energy Bluetooth

Features:

    • Recommend UV dose between 200 mJ/cm² and 2000 mJ/cm², varies depending on aggregate and spectrum
    • UV Analyzer for UV and LED systems

Measuring is quite easy. Put the strip on your substrate, irradiate it with UV and measure the strip with the stick. The app will show you the measured dose in mJ/cm². This dose value can be compared with your reference value to determine aging. Reference values for the UV analyzer are determined directly by you on site when the system is new. The measurements can be exported for quality assurance and documentation.
