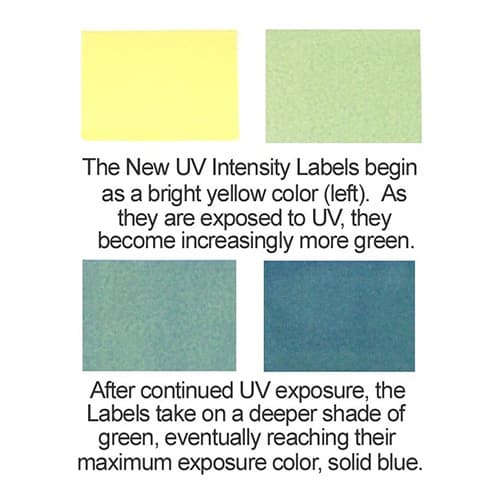

Made from the same exclusive material as the UV FastCheck Strips™, the UV Intensity Labels™ (N010-005) have the same color changing principle as the Strips, but they have only 1 color changing square. The UV Intensity Labels have much greater color shift and are not subject to increasing color changes at elevated temperatures.
The adhesive backed label is placed on a sample product or substrate and processed to proper cure rate. The color deviation can easily be measured with a spectrophotometer to record color change or by comparing the colors to test labels created to known operating standards to determine lamp failure or processing inconsistency.
NOTE: For best results, observe color change immediately after exposure to UV light as label may change/fade over time.
Using an X-RITE™ RM200QC Spectrocolorimeter, you can monitor the color change results,
If used on a regular basis, these labels can detect equipment problems at an early enough stage to prevent lengthy shutdowns. Daily tests can easily indicate a step by step calibration for an accurate reference within each batch.
The UV INTENSITY LABELS™ are especially useful in systems where other instruments are not practical, such as 3-D curing, web coating, container printing, medical sterilization, etc.
● The UV Intensity Labels™ measure the entire UV spectrum
● Accurate visual determination of UV dose made possible
● Monitor UV dose in difficult-to-access curing environments
● Detect UV lamp degradation and equipment failures
● Provide the user with periodic assurance that their UV source is performing to expectations
● Greater rate of color change provides clearer, more precise UV dose determination
● Determine the dose profile in the 3D curing chambers or across wide webs to ensure even cure
● Measure the dose of sunlight in outdoor curing applications
● Evaluate and compare multiple UV light sources
N010-005 UV Intensity Labels
The UV Intensity Labels™ are available in packages of 990 labels (9 sheets of 110 labels per sheet). The UV Intensity Labels Dimensions: 19mm x 25mm.
● Shelf life is currently rated at 12 months minimum.
● Usage well beyond current rating is possible with proper storage.
● Store in the original packaging out of direct light and away from excessive heat or moisture.
● Store package flat, not vertical.
● Ideal storage location is within a cool and dry location like a drawer.
